ATO series is a split core current transformer for the electronic measurement of AC waveform current with galvanic separation between the primary circuit (power) and the secondary circuit (measurement).

ATO series is an ideal current transformer for new Smart-Grid applications, in which ratio error and phase displacement are fully tested with IEC 61869 standards accordance.

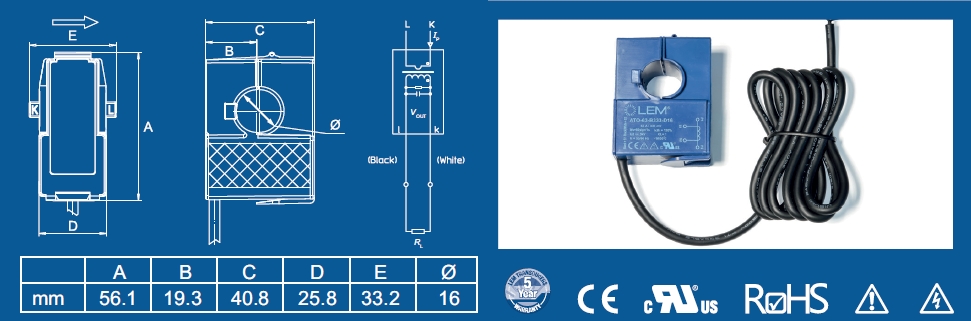

ATO SERIES(ATO-75-B1I-D10, ATO-75-B333-D10, ATO-125-B225-D16)

Features

• Split-core current transformer
• Rated primary current: 10 A - 15 A - 16 A - 20 A - 30 A - 32 A - 50 A - 60 A - 63 A - 75 A
• Application up to 600 V CAT III PD2, basic insulation
• Accuracy class 1 (IEC 61869-2)
• Voltage output, 333 mV at IPr
• 10 mm sensing aperture
• 1 m output cable
• Ambient temperature .10 ℃ … +55 ℃
• Very low cost solution
• Slot for attaching the C.T. on the primary with plastic tie
• DIN rail adapter (optional).

Advantages

• No interruption of electricity during installation on insulated conductors
• Quick, non-intrusive and easy setup
• Provide a calibrate output.

Applications

• Hybrid inverter (Home Energy Storage)
• Power metering: current measurement for active power calculation
• Building sub-metering: energy efficiency monitoring,consumption analysis and cost allocation
• Power quality monitoring: electrical loads and distribution system equipment
• Distributed measurement systems
• Condition monitoring (e.g. Motor loads such as conveyers,pumps).
